SIPGIL VANADIUM CATALYST
- The energy efficient operation of the SO2 converter is highly dependent upon the quality, characteristic and composition of the selected catalyst.
- Since the SO2 converter is the heart of the sulfuric acid plant, the type of catalyst selected plays a vital role in efficient sulfuric acid production.
- The physical and chemical properties of the catalyst influence the strength, activity Pressure drop and service life of the catalyst.
- Sipgil vanadium catalyst is so designed as to endure extreme conditions and special support material ensures long service life.
- Sipgil Research development cell over the years has improved the catalyst quality as far as energy efficiency, higher production rates and low SO2 emissions are concerned.
In spite of the above mentioned specialties the Sipgil vanadium catalyst has the following benefit.
- Can handle strong SO2 feed gas without crossing the exit temperature limit
- Can effectively handle rapid change in feed gas composition
- The ignition temperature is low as compared to other catalysts, for fast startups.
- Auto thermal restart after a relatively longer period
- High conversion rate both in single and double absorption reactor with sipgil selected vanadium

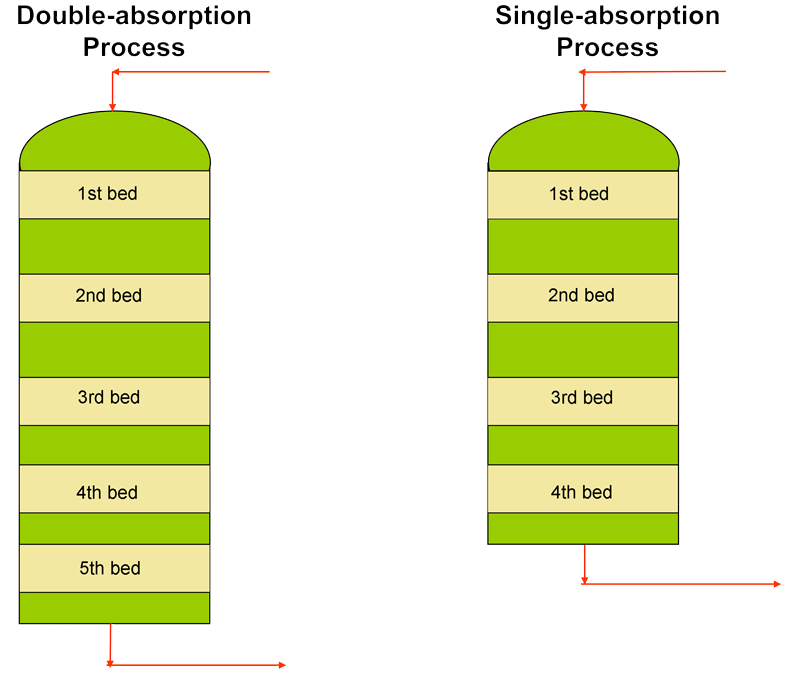

| Typical Process Configurations |
 |
| Usage: 1) For double-absorption process SG1101 series: 2/3 lower part of 1st, 2nd bed, 3rd bed SG1108 series : 1/3 uper part of 1st bed, 4th bed, 5th bed SG1102 series: 1/3 uper part of 1st bed, 4th bed 2) For single-absorption process SG1101 series: 2/3 lower part of 1st bed, 2nd bed, 3rd bed,4th bed, 5th bed (if have) SG1108 series: 1/3 uper part of 1st bed SG 1102 series: 1/3 uper part of 1st bed(For detailed information of each catalyst, plese refer to instruction book or ourproduct catalogue) |
| Typical Process Configurations |
 |
